A compact substation is a critical component in modern power distribution systems, designed to integrate medium-voltage switchgear, distribution transformers, and low-voltage panels into a single enclosed unit.

Selecting the right compact substation is essential for ensuring reliable power supply, operational safety, and long-term efficiency. For industrial plants, residential developments, commercial complexes, and infrastructure projects, the correct choice can significantly reduce installation costs and improve system performance.

Understanding What a Compact Substation Is

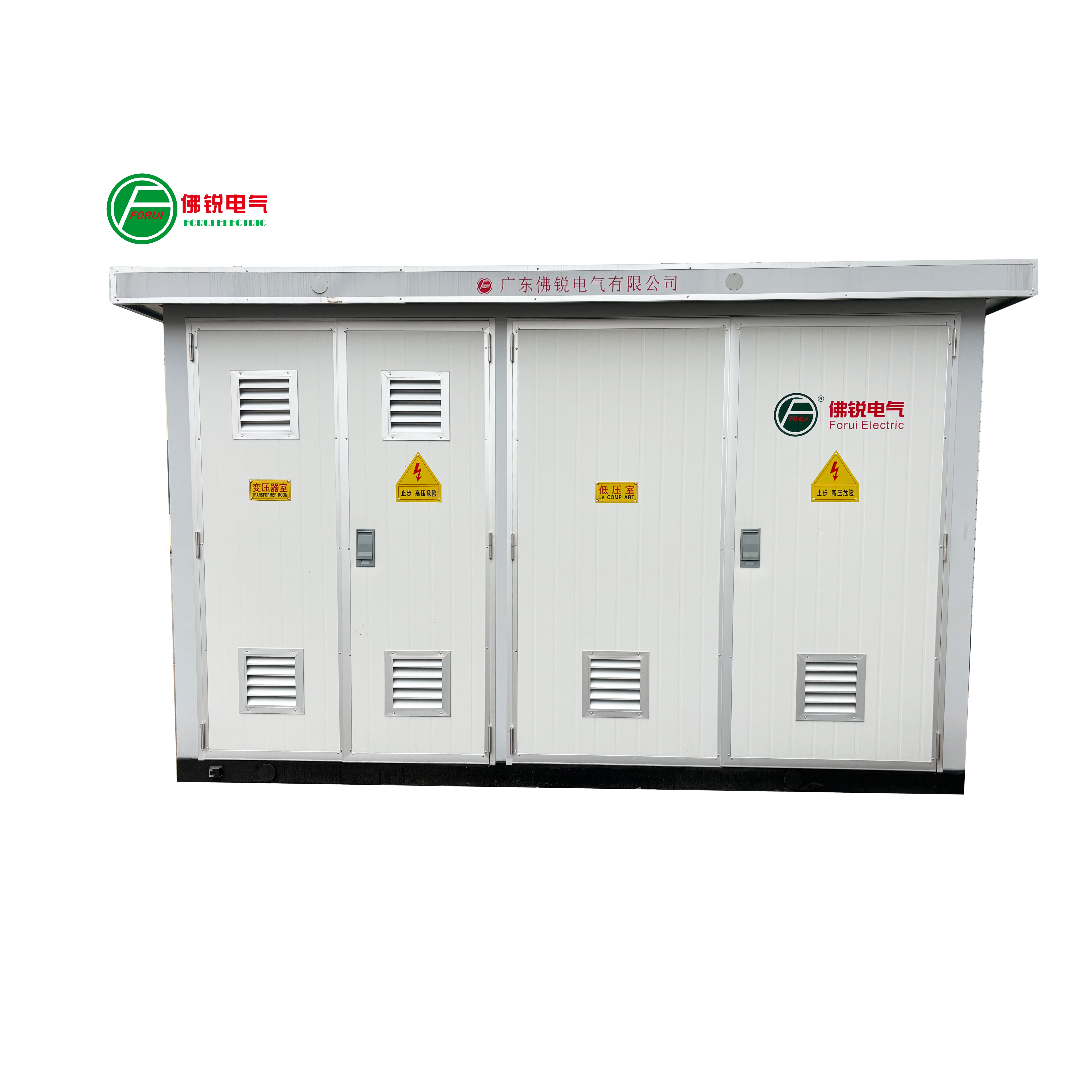

A compact substation, sometimes called a prefabricated or package substation, is an integrated power distribution solution that combines multiple electrical components within a factory-assembled enclosure. It typically includes a medium-voltage switchgear section, a distribution transformer, and a low-voltage distribution system.

Unlike traditional substations that require large on-site construction and complex civil works, compact substations are pre-engineered and tested before delivery. This makes them faster to install, easier to maintain, and more adaptable to space-limited environments such as urban areas, factories, and renewable energy sites.

Key Factors to Consider When Choosing a Compact Substation

When selecting a compact substation for your project, several technical and environmental factors must be carefully evaluated.

First, power capacity is one of the most important considerations. The rated power of the transformer should match the load demand of your project, with sufficient margin for future expansion. Undersizing may lead to overloads, while oversizing can increase unnecessary costs.

Second, voltage level compatibility must align with your local grid requirements. Common configurations include medium-voltage inputs such as 10kV, 15kV, or 20kV, with low-voltage outputs like 0.4kV for end-user distribution.

Third, the installation environment plays a major role. Outdoor compact substations require weather-resistant enclosures with strong protection against rain, dust, corrosion, and extreme temperatures. In contrast, indoor installations may prioritize space efficiency and ventilation.

Fourth, safety and protection systems are essential. A high-quality compact substation should include fault protection, overload protection, short-circuit protection, and reliable grounding systems to ensure stable operation under all conditions.

Finally, compliance with international standards such as IEC or IEEE ensures that the equipment meets global safety and performance requirements.

Types of Compact Substations for Different Applications

There are several types of compact substations designed for different applications. The most common include ring main unit (RMU) substations, pad-mounted substations, and prefabricated box-type substations.

Ring main unit-based designs are widely used in urban distribution networks where reliability and switching flexibility are required. Pad-mounted substations are commonly installed in residential and commercial areas due to their compact footprint and aesthetic design. Prefabricated box-type substations are often used in industrial and large-scale infrastructure projects because they support higher capacities and robust performance.

Choosing the right type depends on your project scale, load requirements, and site conditions.

Benefits of Selecting the Right Compact Substation

Choosing the correct compact substation brings multiple long-term benefits. First, it improves energy efficiency by reducing transmission losses and optimizing load distribution. Second, it enhances operational safety by minimizing the risk of electrical faults and ensuring stable system protection.

In addition, a properly selected substation reduces installation time and civil construction costs, as most components are pre-assembled and tested in the factory. This also simplifies maintenance, allowing technicians to quickly access and service key components.

From a long-term perspective, the right choice also ensures scalability, allowing your power system to expand as demand grows without major redesign or replacement.

Conclusion

Selecting the right compact substation is a strategic decision that directly affects the reliability, safety, and efficiency of your power distribution system. By carefully evaluating capacity, voltage requirements, environmental conditions, and protection features, project developers can ensure optimal performance and long-term value. FORUI compact substations are engineered to support a wide range of voltage levels and power capacities while fully complying with international electrical standards.
